AEM Water and Oil temperature sensors

AEM - Water temperature sensors 30-2013, 30-2012 and 30-2011 AEM offers 1/8" NPT DTM-Style Connector(PN 30-2013), 1/8" NPT (PN 30-2012) and 3/8" NPT (PN 30-2011) water/oil temperature sensor kit.
£43.20

Home

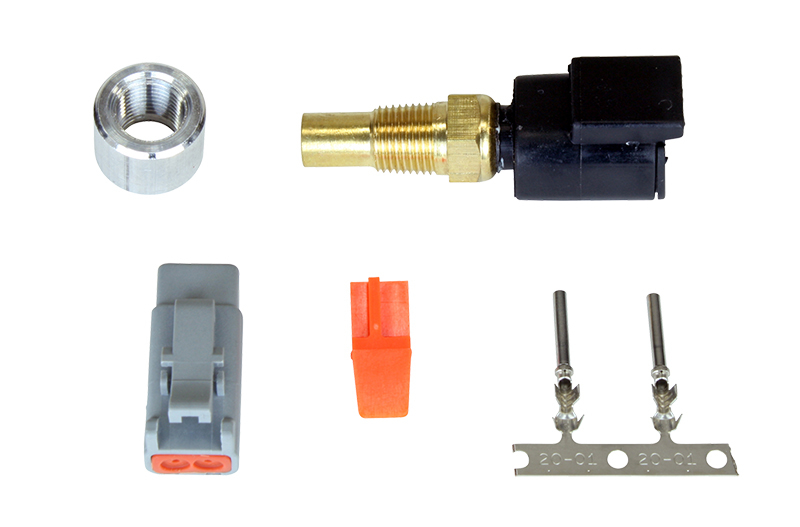

30-2013 - Temperature Sensor Kit

  • Accuracy: < 1.5°C / 2.7°F
  • Operating Temp: -20C to 150C / -4F to 302F
  • Resistive Range (Ω): See Instructions
  • Dissipation Constant: 12 mW/°C. The ratio, at a specified ambient temperature, of the change in the power dissipation of the sensor to the resultant temperature change of the thermistor. Test medium: silicone oil.
  • Thermal Time Constant: 10 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil.
  • Sensor Body Material: Brass
  • Thread: 1/8" NPT
  • Hex Size: 1/2"
  • Installation Torque: 13.5Nm / 10 ft-lbs
  • Weight: 10g
  • Electrical Termination: Weatherproof High Performance DTM-Style connector. Includes Mating Connector, Pins & Wire Seals
  • Includes: Water Temp Sensor High Performance DTM-Style, 1/8" NPT Alumium Bung, Mating Connector, Pins & Wire Seals



30-2012 - 1/8" Water Temp Sensor Kit

  • Accuracy: < 2°C / 3.6°
  • Operating Temp: -40C to 200C / -40F to 392F
  • Resistive Range (Ω): See Table
  • Dissipation Constant: 12 mW/°C. The ratio, at a specified ambient temperature, of the change in the power dissipation of the sensor to the resultant temperature change of the thermistor. Test medium: silicone oil.
  • Thermal Time Constant: 10 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil.
  • Sensor Body Material: Brass
  • Thread: 1/8"-27 PTF
  • Hex Size: 1/2"
  • Installation Torque: 13.5Nm / 10 ft-lbs
  • Weight: 12.2g
  • Elec. Termination: Connector. Includes mating connector, pins & pin lock
  • Includes: Water Temp Sensor, Connector, Pins & Pin Lock

30-2011 - 3/8" Water Temp Sensor Kit

  • Accuracy: < 2°C / 3.6°F
  • Operating Temp: -40C to 135C / -40F to 275F
  • Resistive Range (Ω): See Table
  • Dissipation Constant: 24 mW/°C. The ratio, at a specified ambient temperature, of the change in the power dissipation of the sensor to the resultant temperature change of the thermistor. Test medium: silicone oil.
  • Thermal Time Constant: 20-30 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil.
  • Sensor Body Material: Brass
  • Thread: 3/8"-18 NPT
  • Hex Size: 3/4"
  • Installation Torque: 20Nm / 15 ft-lbs
  • Weight: 39.5g
  • Elec. Termination: Weatherproof connector. Includes mating connector, pins & wire seals
  • Includes: Water Temp Sensor, 3/8"-18 NPT Aluminum Bung, Connector, Pins & Wire Seals

Please click here for full product details
